Sotion Motor upgrade For Talaria Sting E-Moto 24Kw

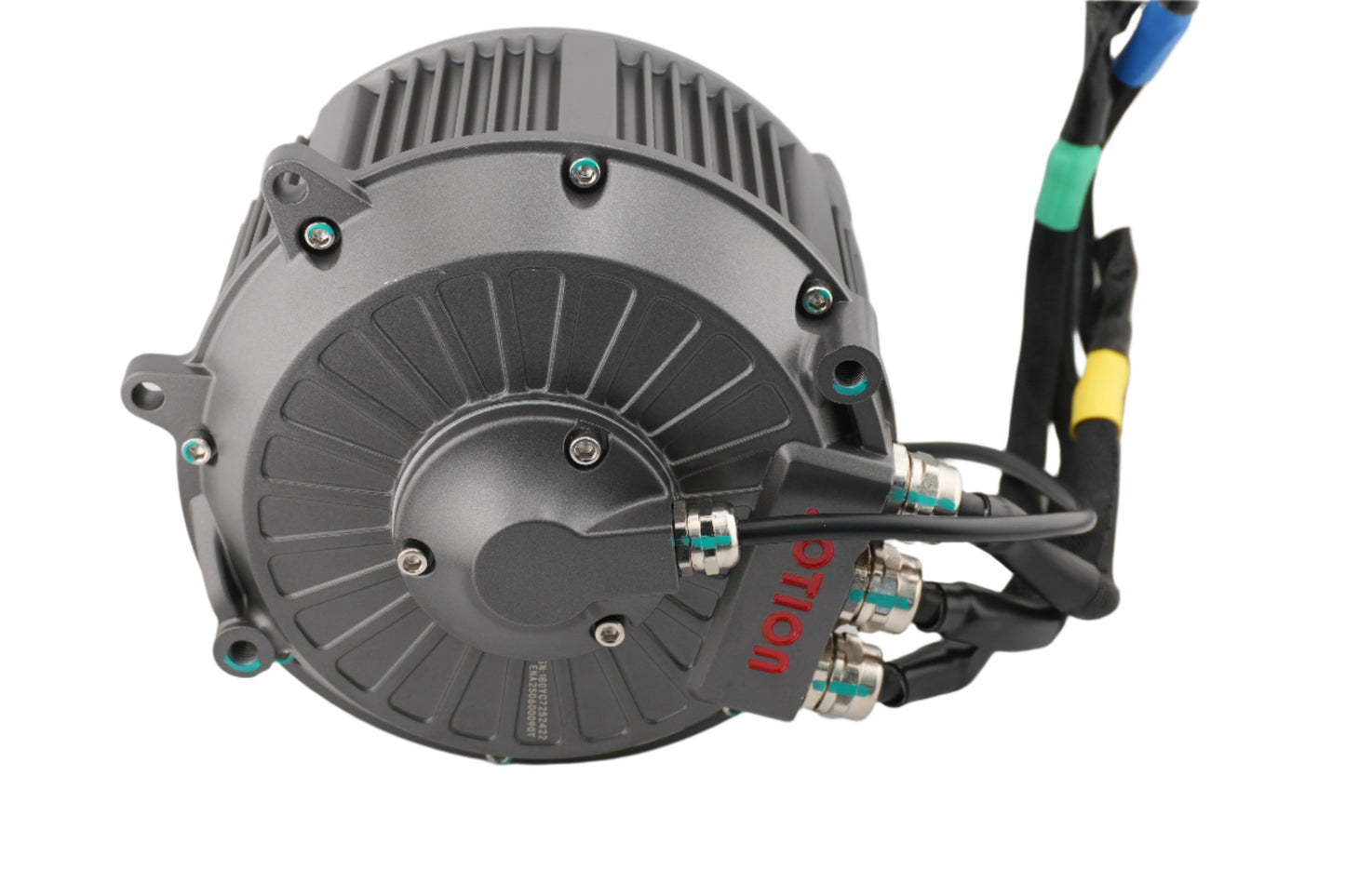

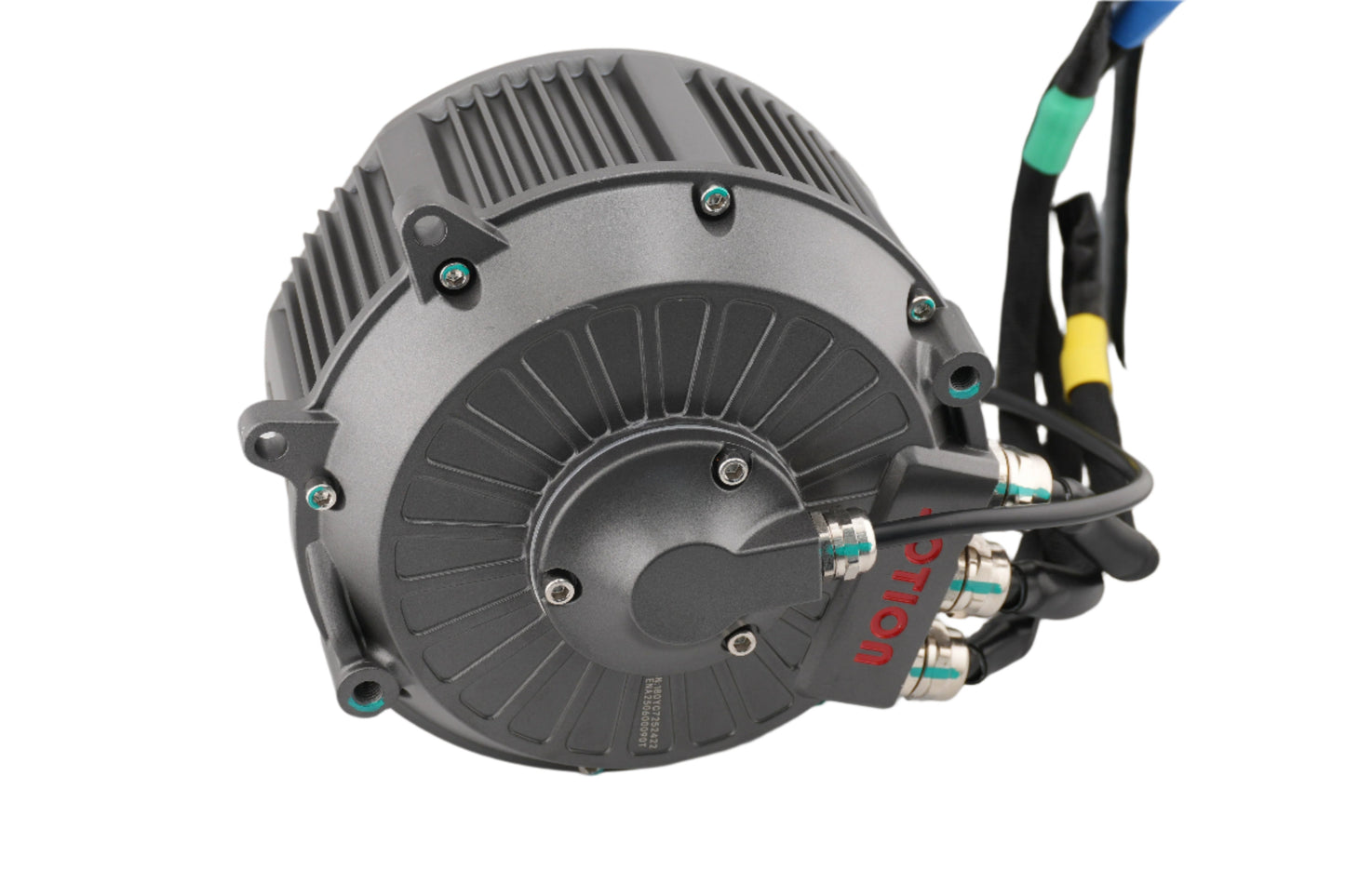

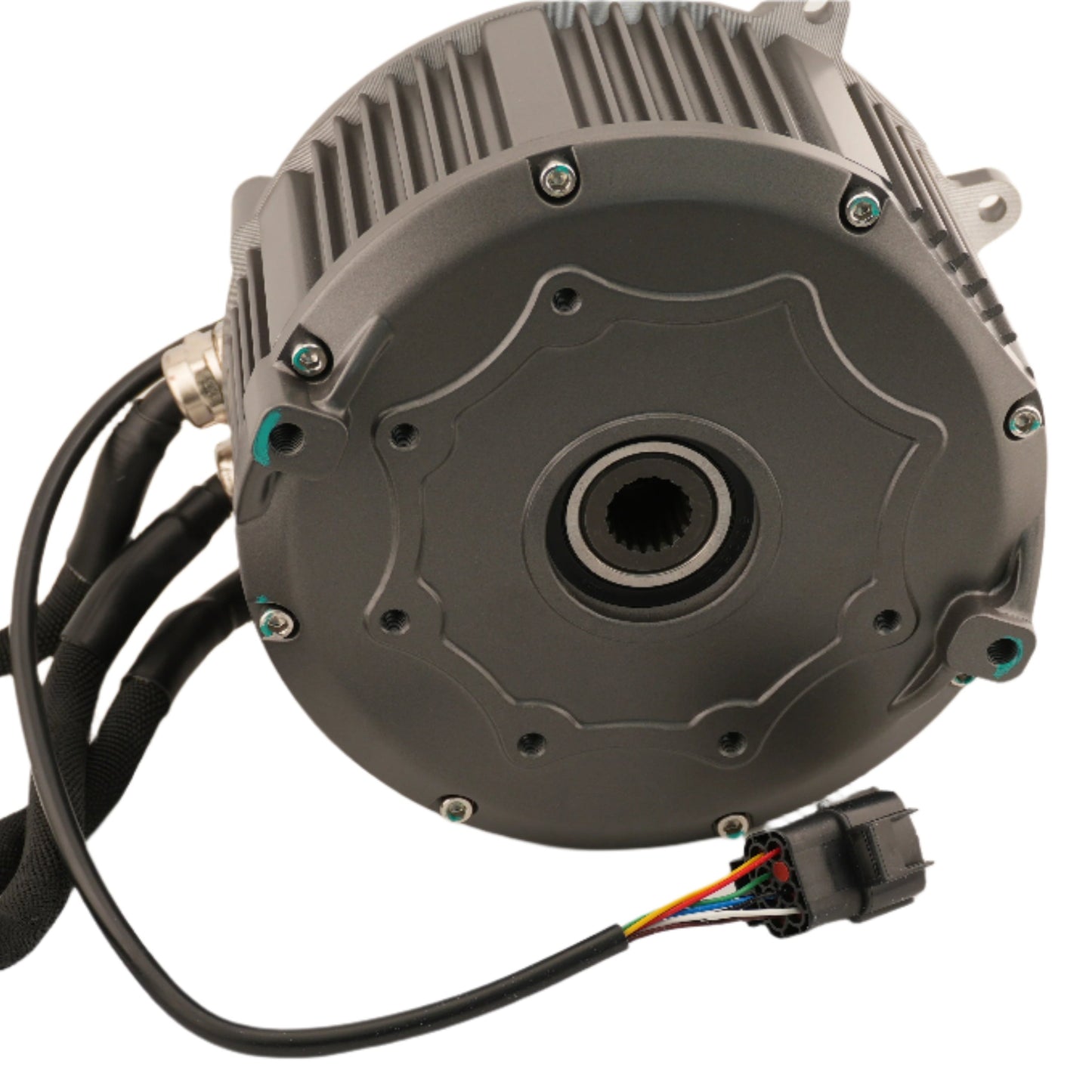

Sotion Motor (FW02) for the Talaria Sting R MX4 electric motorbike is a high-power, aftermarket performance upgrade.

Sotion Motor For Talaria Sting R MX4 Features

• High-Power 72V Motor Upgrade
• Plug-And-Play: No Modifications Required
• Durable Internal Magnet Motor (IPM) Design
• Power Performance: 12kW / 24kW Peak
• Comes with Encoder Sensor

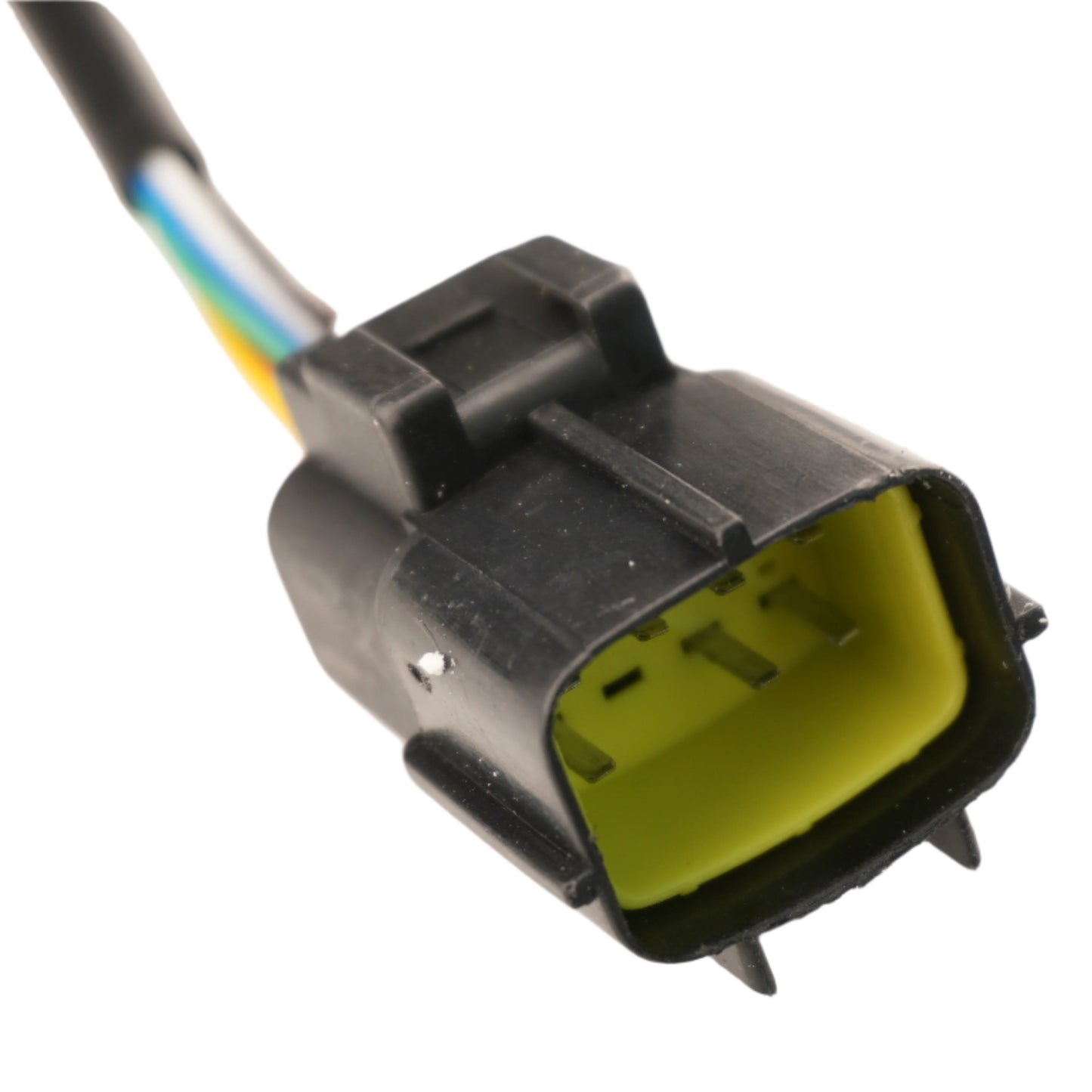

• Comes with the correct plug already wired on for the talaria wire harness

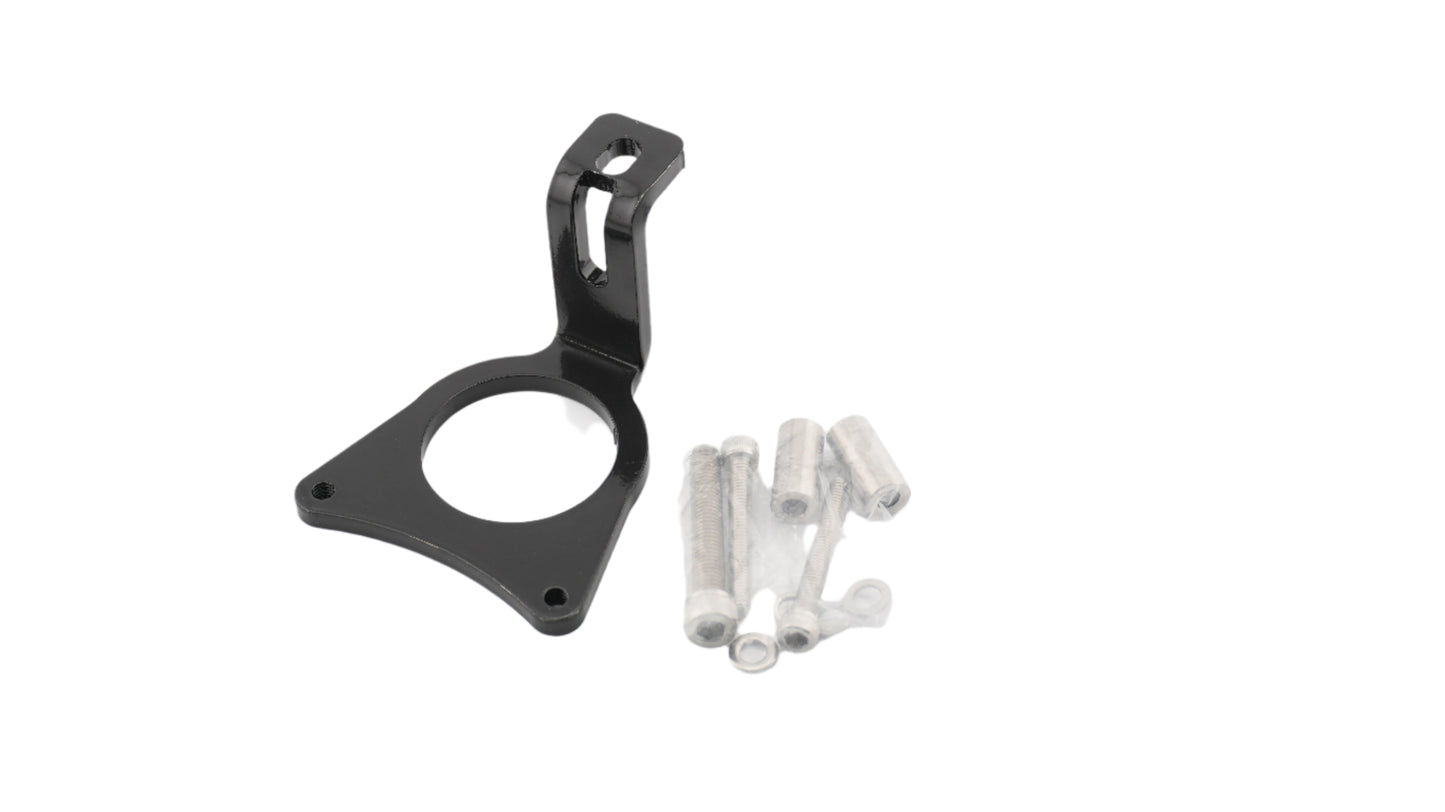

• Comes with New Black Gearbox Bracket - Stronger than previous version, it also mount to the gearbox instead of just sitting against it.

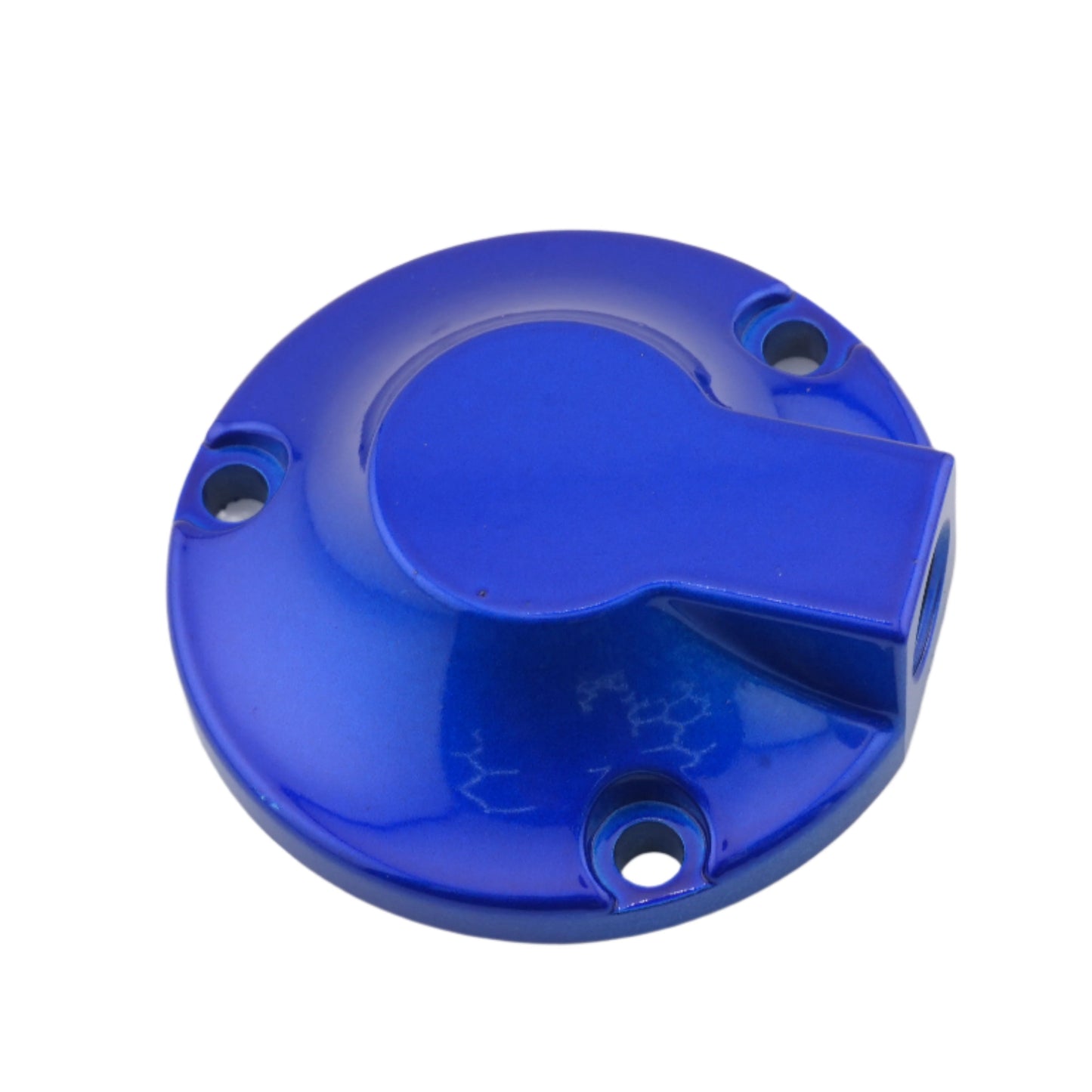

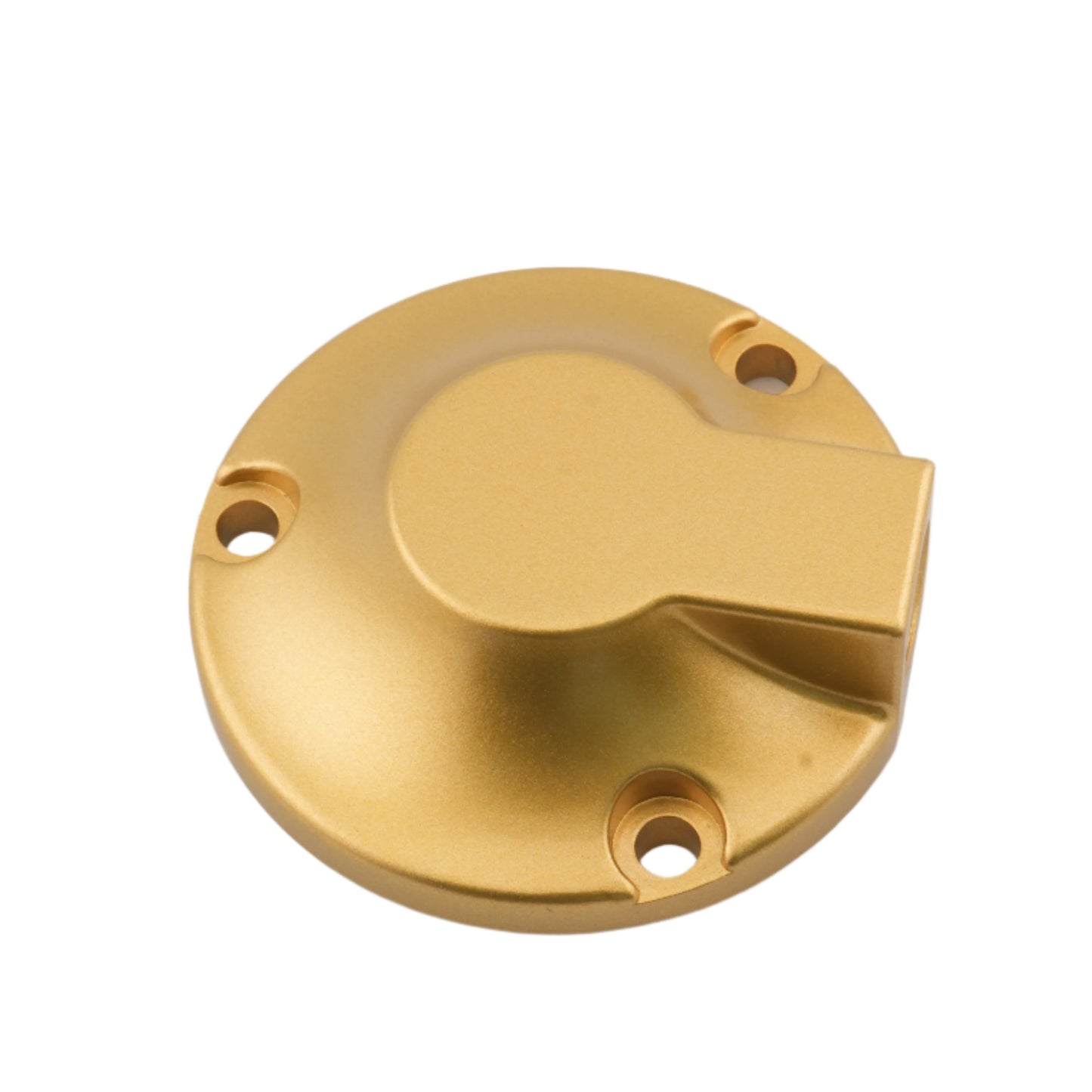

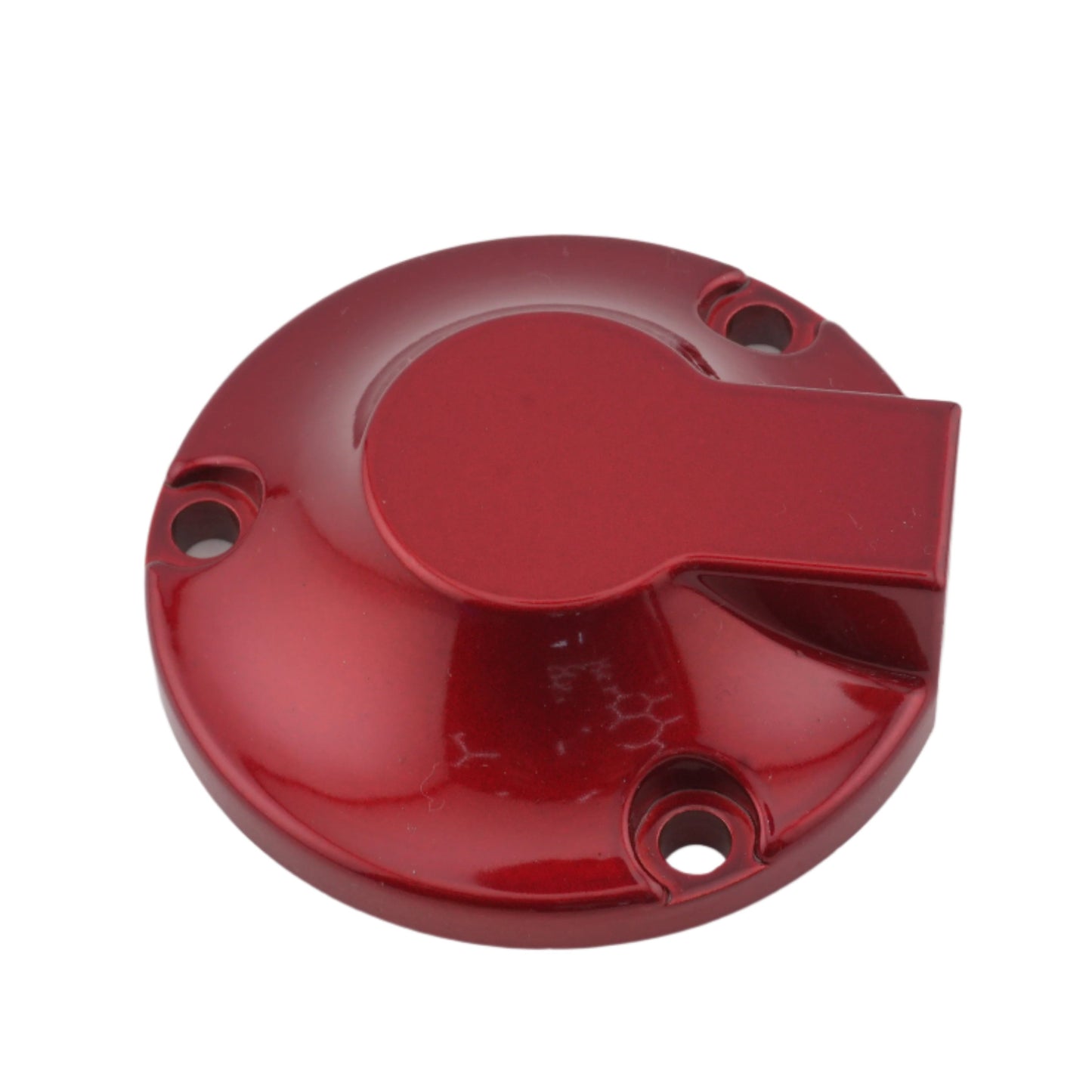

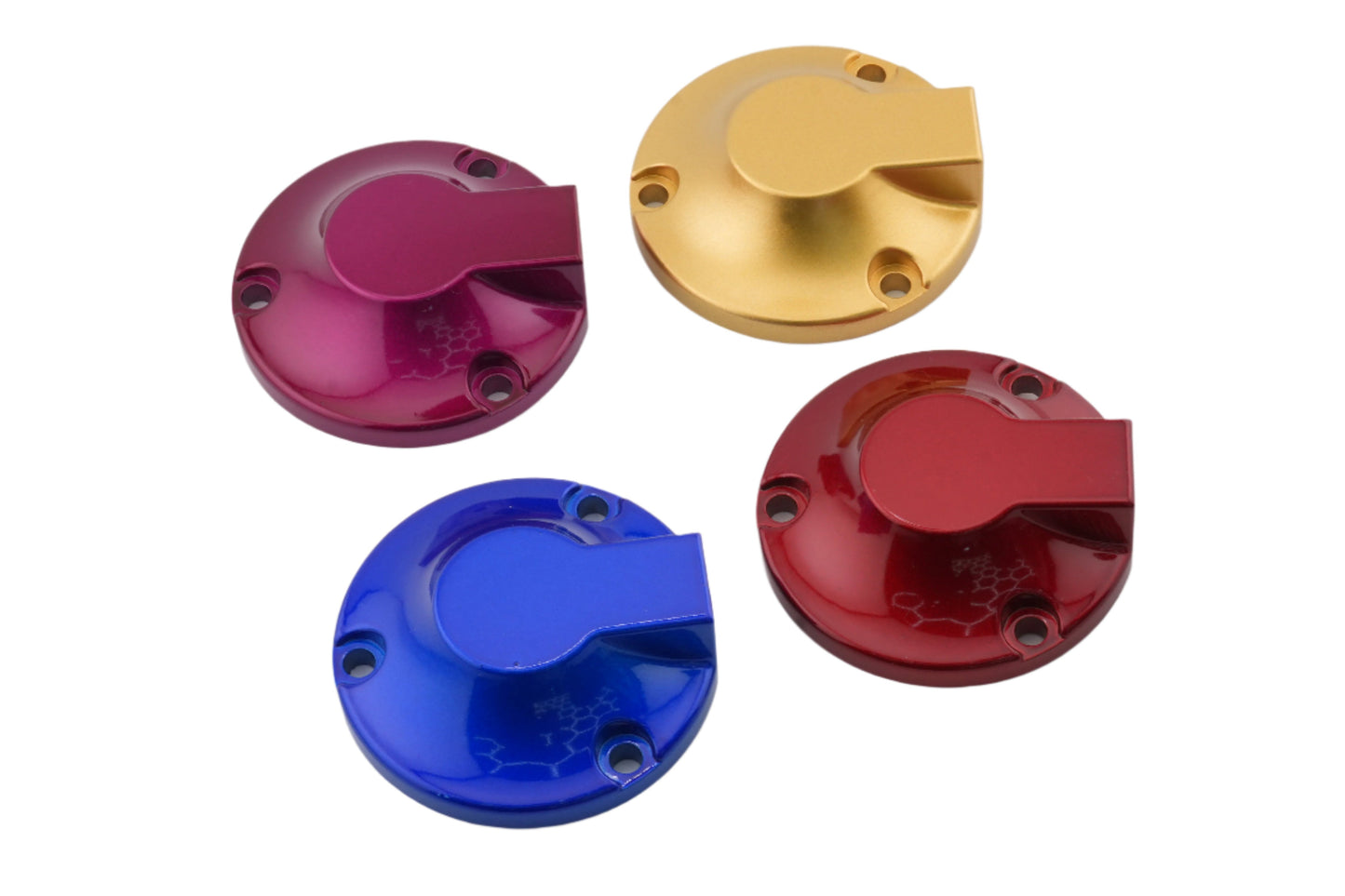

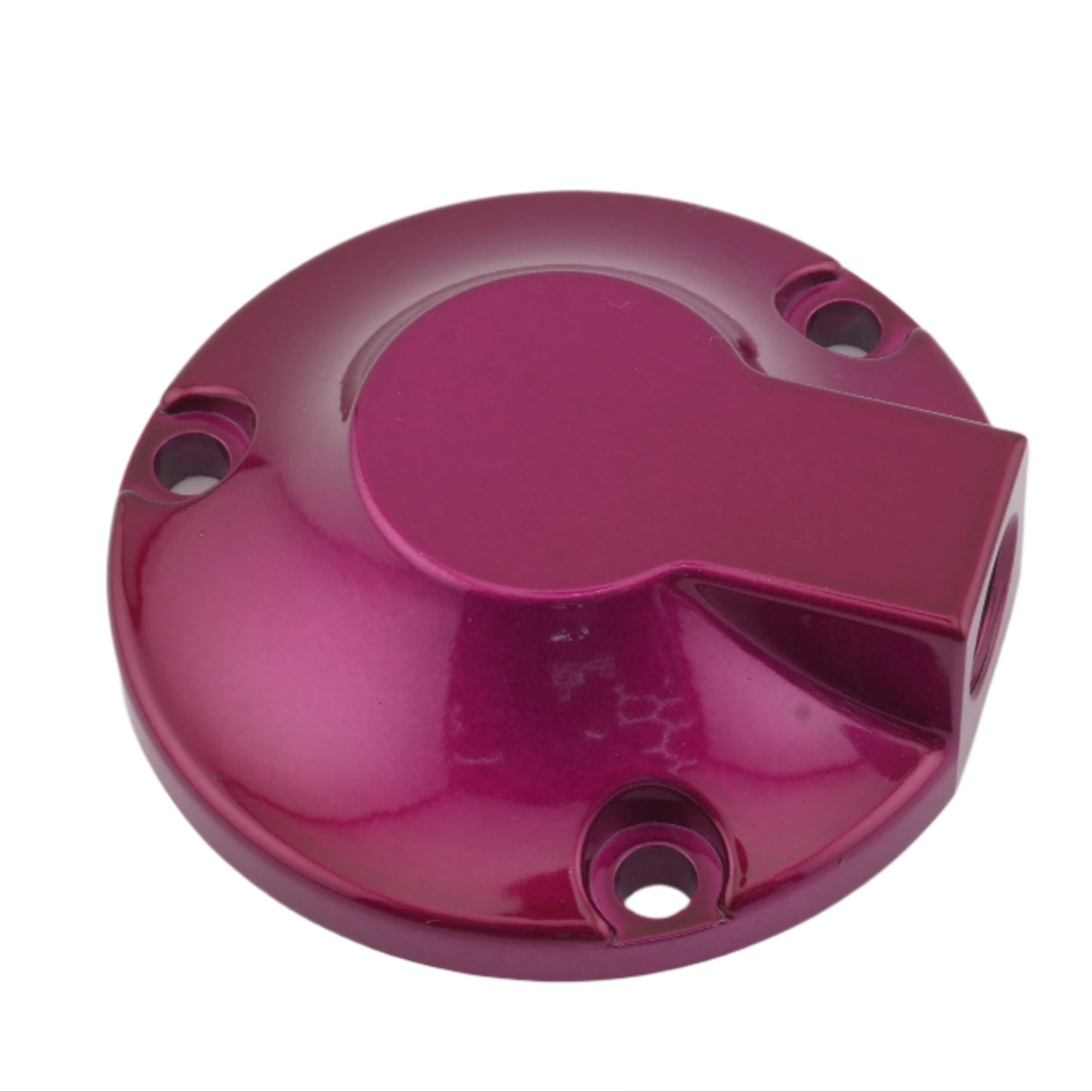

• Comes with Gray Encoder Cover, you can purchase a colored cover separately
• Its also fixed from when we filmed our first install video, you no longer need to get extra washers. Its actually plug and play now.

Talaria Sotion Motor Specs

• Product Model: FW02
• Motor Size: 180mm x 145mm
• Motor Weight: 21.6 lbs (9.8 kg)
• Rated Voltage: 72V
• Rated Power: 12kW
• Peak Power: 24kW
• Rated Torque: 22 N.m
• Peak Torque: 60 N.m
• Peak Phase Current: 650A
• Rated Speed: 5200 RPM
• Peak Speed: 10000 RPM
• Max Efficiency: 92%
• Number of Pole Pairs: 5
• Position Sensor: Encoder (UVW)
• Temperature Sensor: NTC
• Insulation Class: F (155°C)
• Protection Grade: IP67
• Cooling Method: Natural Air Cooling

Bike Fitment:

• Talaria Sting MX4/R
• Talaria Sting MX3

• Pairs perfectly with an X-9000
• X-9000: pick hall or encoder
• Pairs Perfectly with a Nucular P24F
• Nucular: Pick Encoder
• Pairs perfectly with a Torp TC500/TC1000
• Torp: Pick Hall or Encoder
• Pairs with other controllers as well
